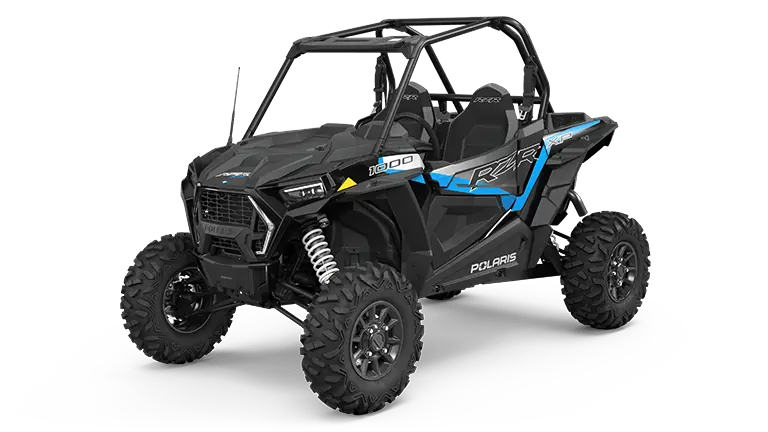

2023 POLARIS RZR XP 1000 ULTIMATE

Cooling

Liquid

Cylinders Displacement

999cc

Drive System Type

High Performance True On-Demand AWD/2WD

Engine Braking System (EBS)

Not Equipped

Engine Type

4-Stroke DOHC Twin Cylinder

Fuel System/Battery

Electronic Fuel Injection

Horsepower

110 HP

Transmission/Final Drive

Automatic PVT P/R/N/L/H

Bed Box Dimensions (L x W x H)

28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)

Box Capacity

300 lb (136.1 kg)

Estimated Dry Weight

1470 lbs (667 kg)

Fuel Capacity

9.5 gal (35.9 L)

Ground Clearance

14 in (35.6 cm)

Hitch Towing Rating

N/A

Overall Vehicle Size (L x W x H)

119 x 64 x 73.75 in (302.2 x 162.6 x 187.3 cm)

Payload Capacity

740 lb (336 kg)

Wheelbase

90 in ( 228.6 cm)

Front/Rear Brakes

4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers

Parking Brake

Park In-Transmission

Cargo System

Lock & Ride®

Doors

Full Doors

Electronic Power Steering

Standard with Quick Turn Rack

Hitch Type

Not Equipped

Instrumentation

RIDE COMMAND® 7” Glove-Touch Display: Built-In GPS, Group ride (cell-based or GPS based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In-Vehicle Communications Capable With Optional Sena Headsets. Digital Instrumentation: Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Indicator, Clock, Gear Indicator, Fuel Gauge, Hi-Temp Light, Seatbelt Reminder Light, Fault Code Display, DC Outlet, Ambient Temp

Lighting

Front Blacked Out Signature White LED Low/High with Accent Lights & Red LED Tail / Brake Lights

Other Standard Features

MB Quart Audio, RIDE COMMAND® , & Rear Camera, Front & Rear LED Accent Lights, Adjustable Tilt Steering

Seat Type

Bolstered Bucket Seats with Driver Seat Slider and Height Adjustable Seat Belts

Front Tires

29 x 9-14; Radial Tire

Rear Tires

29 x 11-14; Radial Tire

Wheels

Cast Aluminum

Electronic Suspension Control System

Not Equipped

Front Shocks

2" Walker Evans Needle Shocks with 16-Position Adjustable Clickers

Front Suspension

Dual A-Arm with Stabilizer Bar and 20 in (50.8 cm) Usable Travel*, 16 in (40.6 cm) of Wheel Travel

Rear Shocks

2.5" Walker Evans Needle Shocks with 16-Position Adjustable Clickers

Rear Suspension

Trailing Arm with Stabilizer Bar and 20 in (50.8 cm) Usable Travel*, 18 in (45.7 cm) of Wheel Travel
